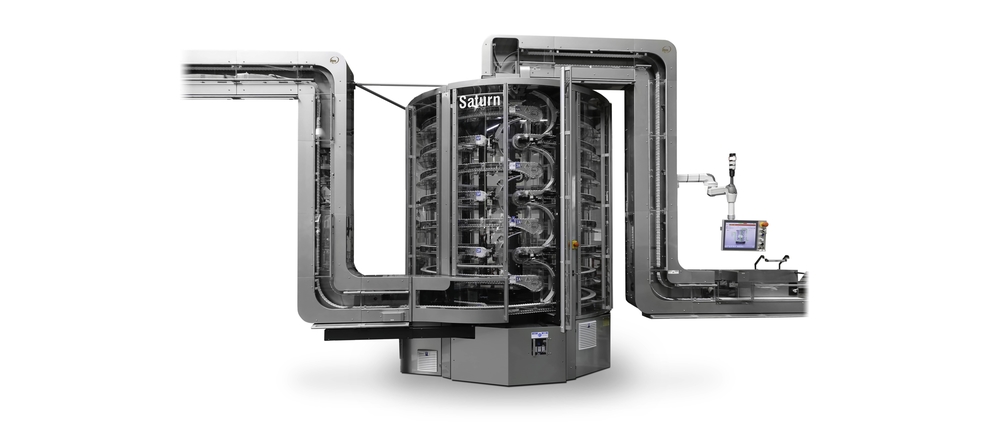

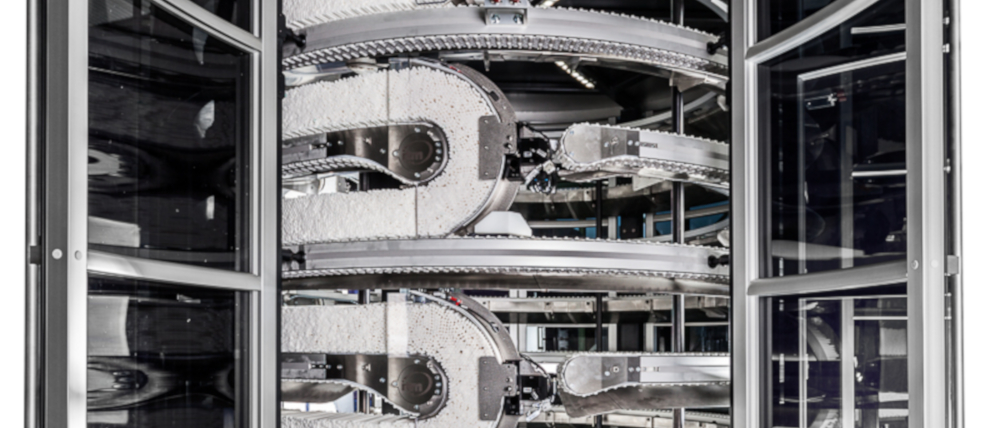

Saturn is a tray-free buffering system enabling smooth and effective handling of product from upstream to downstream machines. Saturn, thanks to its specially designed and compact layout, fits into existing make pack groups and can easily replace obsolete First in Last out (FILO) equipment and operator dependent tray handling systems. It is the perfect solution for limited space and demanding production lines, its ergonomic shape giving a perfect alternative for the market offering simplicity yet maintaining full control of the production process.

First In, First Out

First In, First Out technology is fast becoming essential in today’s demanding production environments when the need for traceability is high on the list. The ITM FIFO reservoir ensures full track & trace product systems, irrespective of different criteria’s, such as time, machine section or particular part of the mass flow enabling automatic  selection/rejection of product at the touch of a button.

Meeting quality targets

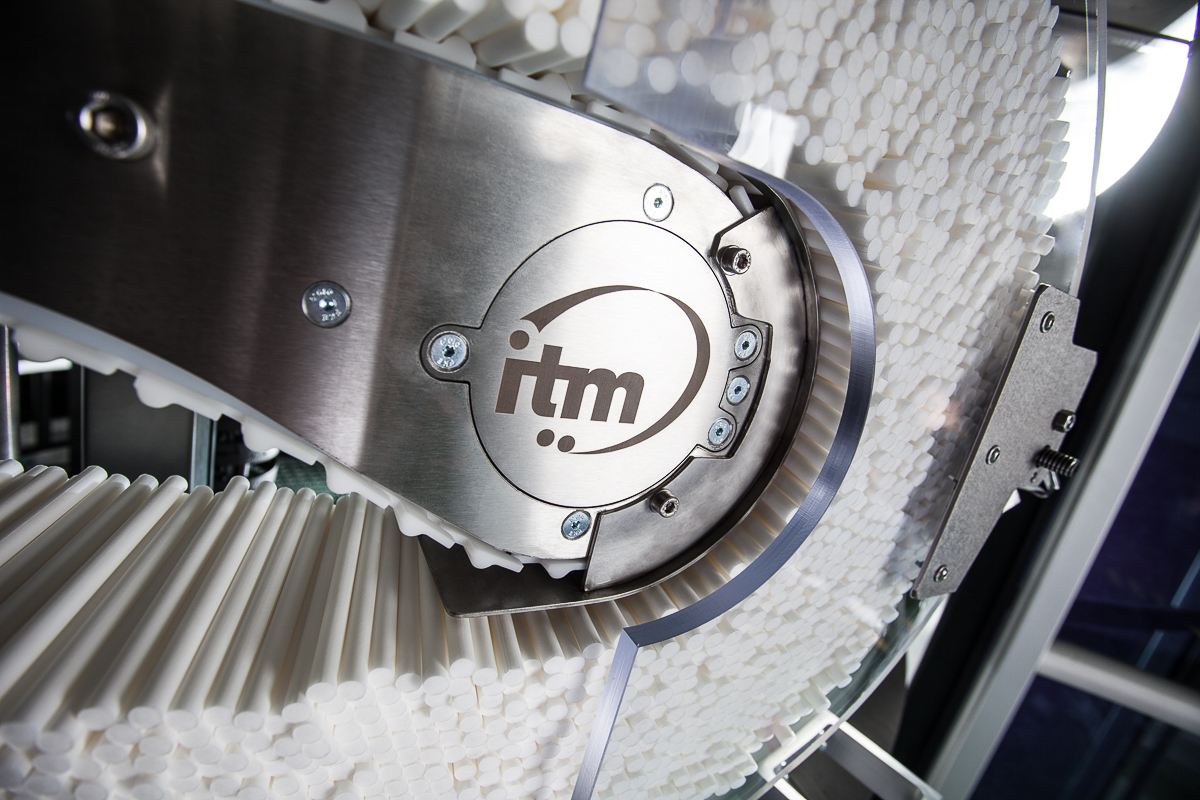

Thanks to exceptional gentle logistics, Saturn minimalizes the generation of loose ends improving downstream machine performance and meeting quality targets. It is especially dedicated to provide effective and clean transport of a wide variety of products of different diameters and manufactured from different materials.

Technical data
Speed
Up to 16.000 rods per minute
Total Capacity
Up to 130.000 rods
Rod length
70 - 150 mm
Rod diameter
Any available on the market
Power consumption
1kVA
