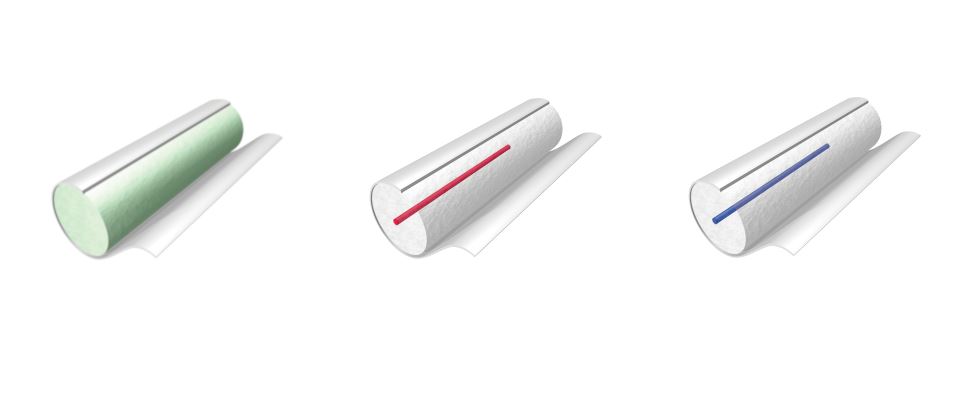

Combustible filters by Polaris
Combustible filters by Polaris
Flexible filter making machine Polaris
Flexible filter making machine Polaris
Combustible filters by Polaris
Combustible filters by Polaris
Flexible filter making machine Polaris
Flexible filter making machine Polaris
Flexible filter making machine Polaris
Flexible filter making machine Polaris
Flexible filter making machine Polaris
Flexible filter making machine Polaris
Interaction with flexible filter making machine Polaris
Interaction with flexible filter making machine Polaris

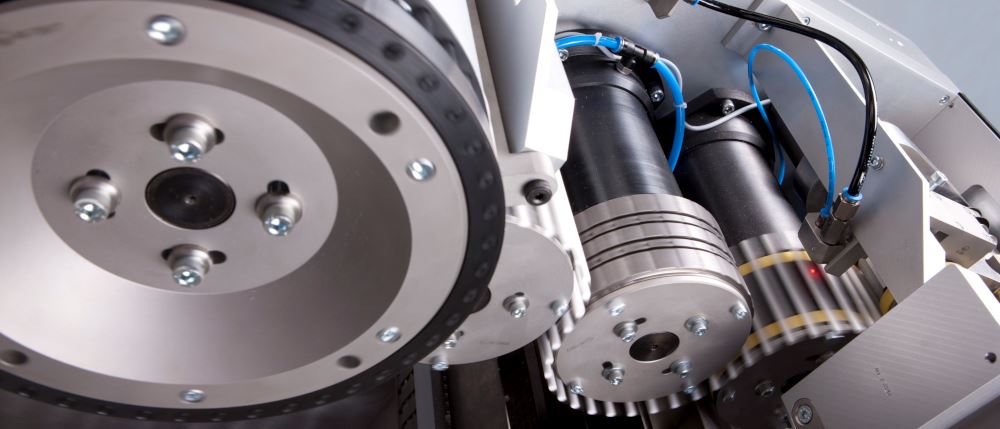

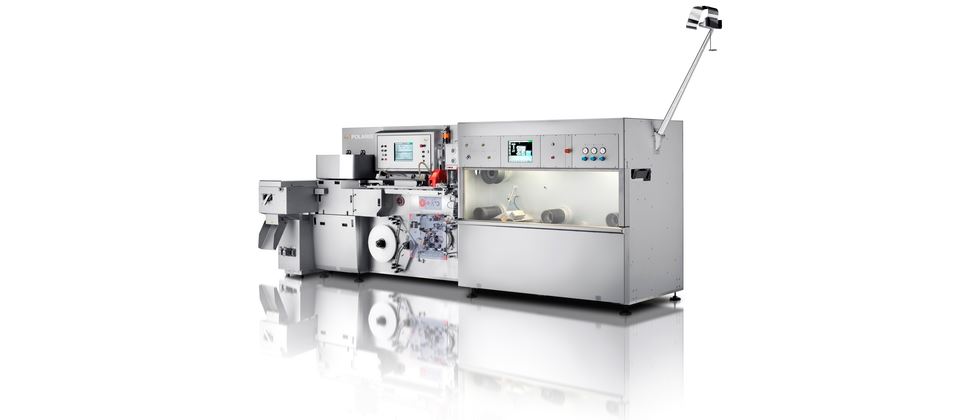

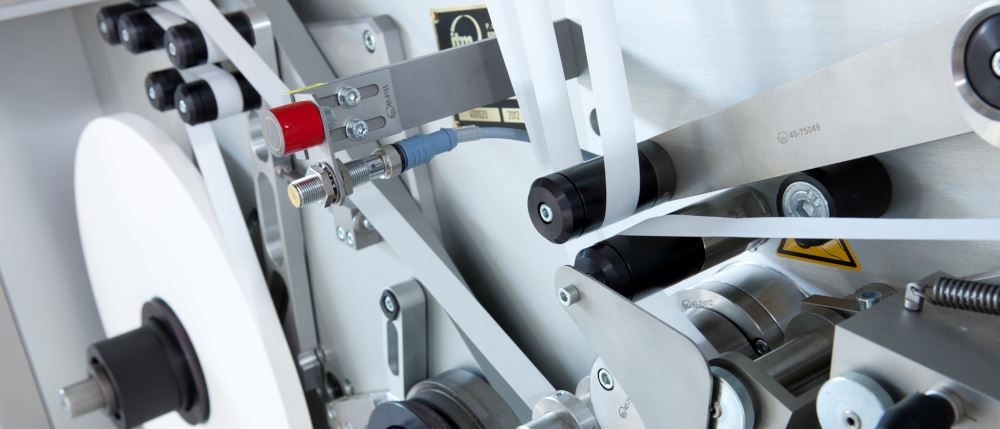

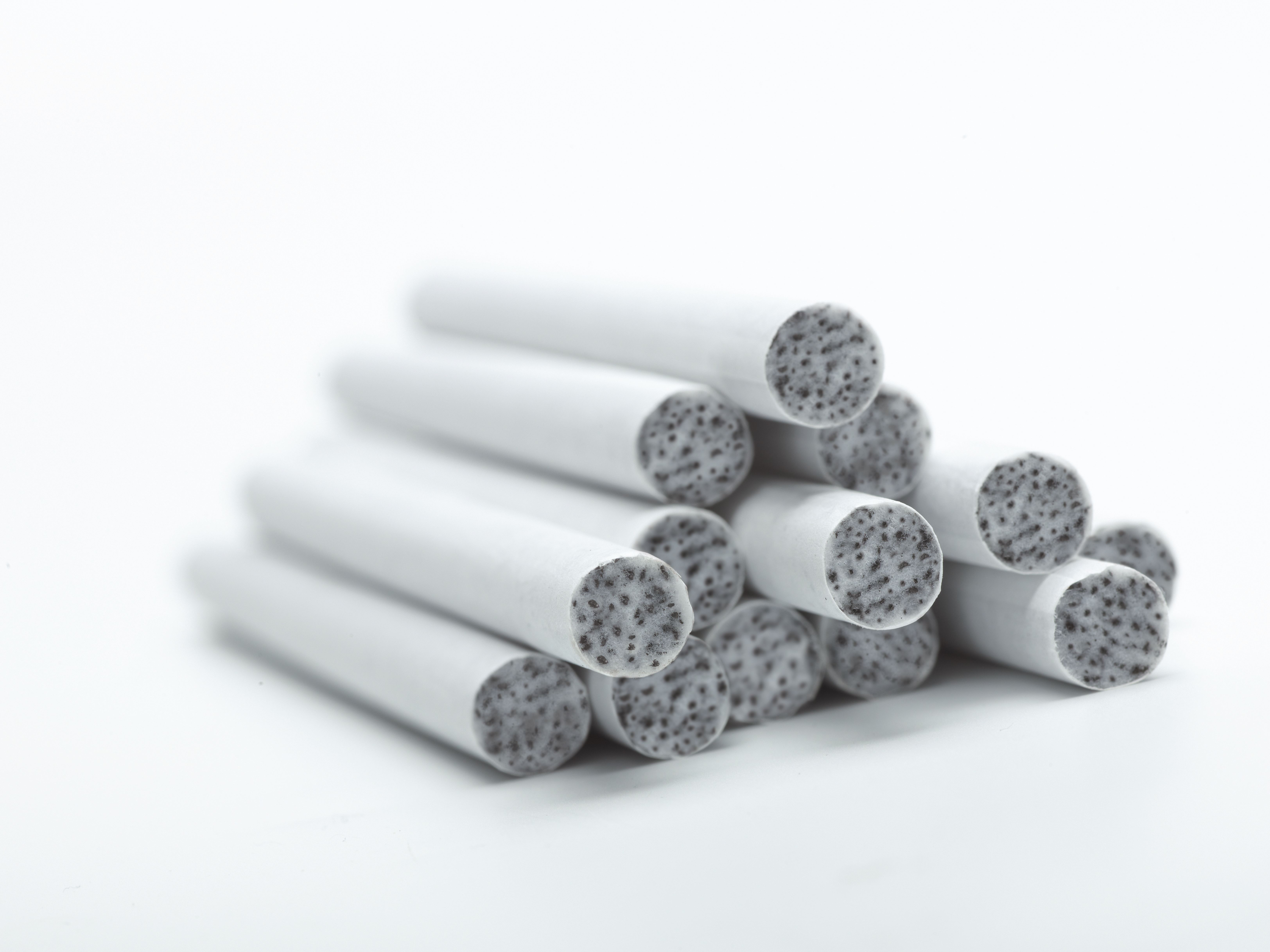

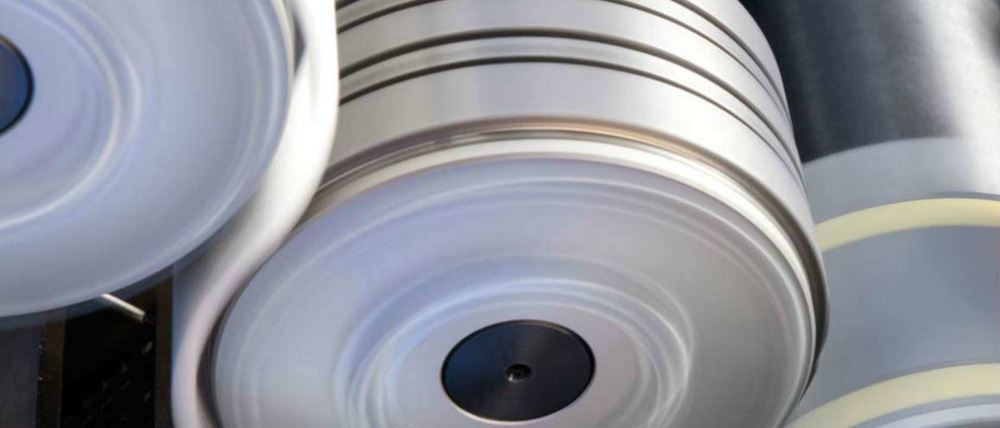

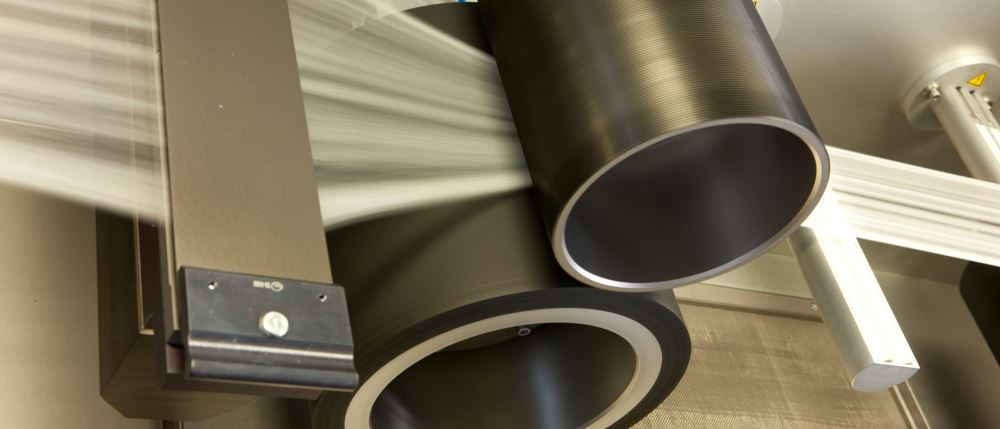

Polaris filter rod maker creates consistent high quality mono-acetate filters. The advanced tow processing techniques with 4 driven process rollers used in the Polaris, results in filters with a low variation in filter pressure drop and an extension of standard capability lines.

Easy accessible settings

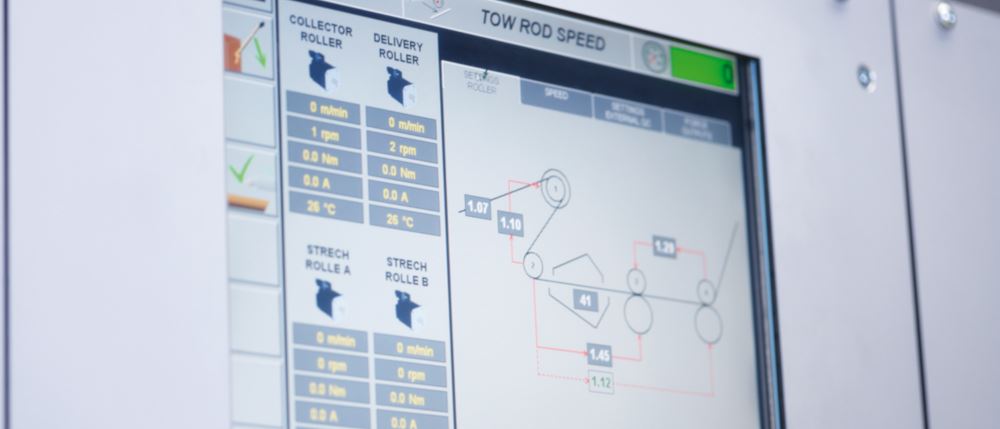

Machine settings are accessible via the integrated touch screens and can be stored in filter recipes. This enables brand changes within minutes and with minimal chance of errors. With the use of a quick conversion set, the filter diameter can be converted to any other size in half the time commonly known, including slim and super slim. Small length corrections can be carried out automatically while the machine is running.

Optional Flavor Application Systems or String Insertion Unit, which can be installed on Polaris, will deliver even more variety and combination of flavors, appearance and filter properties.

Technical data
Output
5.000 rods per minute
Rod speed
500 meters per minute
Rod length
60 - 150 mm
Rod diameter
5.2 - 9 mm
Bobbin core diameter
120 mm
Bobbin outer diameter
600 mm
Compressed air requirement
35 m³/h @ 6 bar
Power consumption
26 kVA
Weight
Approx. 5.280 kg
